In order to leverage the Hellgate Commerce V1 platform for payment processing, you need to extend it to access the full feature set. These extensions are relevant to implement your strategic advantage or to make use of your partner ecosystem.

​
High Level architecture

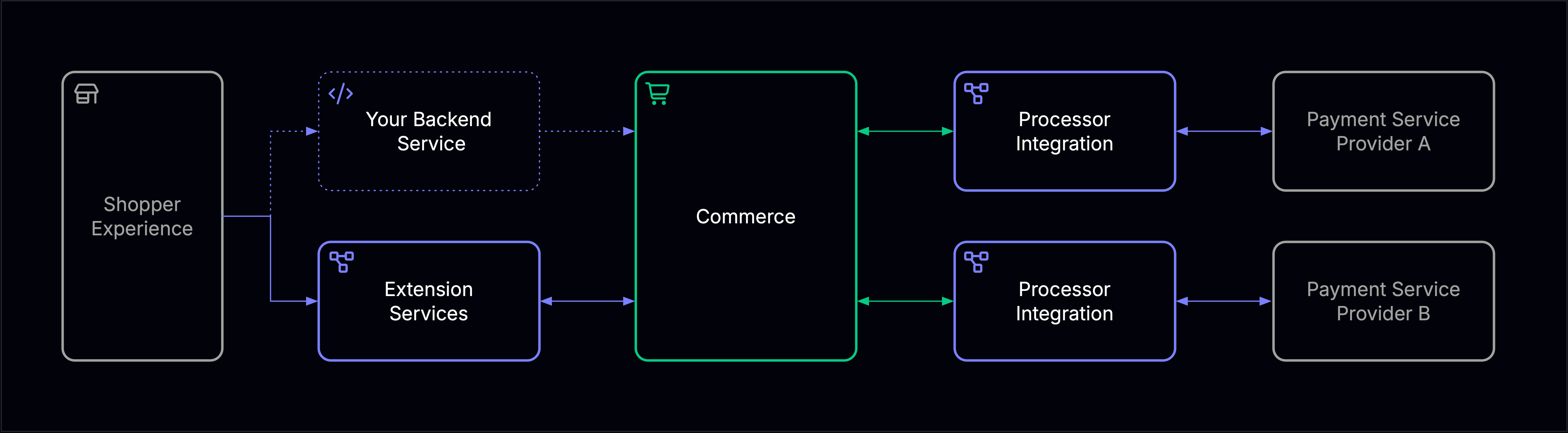

The following illustration highlights the architecture of a Commerce V1 setup.
Diagram showing the Commerce v1 architecture

Extension Services

These are extensions used to customize the shopper interactions like for instance the checkout experience and the maintenance of mandate data.

Processor Integration

These are technical services integrating your payment service providers into Commerce V1. They are very light weight and allow you to customize integration behavior to your strategic advantage.

Commerce

The platform provides the payments-kernel and related standard functionality (e.g. one-off payment with split instruction). It is foundational for your extensions but caters for the majority of the functionality.

​
Interfaces

Commerce V1 offers two primary ways to communicate with the platform: synchronous REST APIs for direct operations and asynchronous Cloud Events for service-to-service communication.

REST APIs

Make direct API calls to process payments, manage customer data, and configure your instance. All endpoints use JSON for request and response payloads.

Cloud Events

Asynchronous service-to-service communication using the CloudEvents specification.

​
Authentication

Commerce V1 supports two authentication methods depending on your integration type.

​
Service-to-Service

Communication between your backend services and the Hellgate platform uses mutual TLS (mTLS) certificates for authentication. This provides cryptographic authentication and encrypted communication between your services and Commerce V1.
curl --cacert mtls-ca.pem \
     --cert mtls-client.pem \
     --key mtls-client-key.pem \
     https://your-commerce1.on-hellgate.cloud/payments \
     --data '{}' \
     --header "x-account-id: $ACCOUNT_ID"
Your mTLS certificates are provided during instance provisioning. Contact our support if you need to rotate or update your certificates.

​
Customer-to-Service

In case you want to expose the services of the Hellgate platform to your customers, you can use API keys for authentication. API keys are scoped to specific merchants and can be configured with granular permissions.
curl https://your-commerce1.on-hellgate.cloud/payments \
     --data '{}' \
     --header "x-api-key: $API_KEY"
API keys should be stored securely and never exposed in client-side code. Rotate keys regularly as part of your security best practices.

​
Migrating from Previous Versions

If you’re migrating from an older version of Commerce, Commerce V1 provides several integration patterns to ease the transition.

​
Event Bridge Service

Deploy the event bridge service to translate Commerce V1 Cloud Events into your existing event format. This allows you to maintain your current event-driven workflows while migrating to Commerce V1. The bridge service:
  • Handles mTLS authentication for secure connection to Commerce V1
  • Subscribes to Commerce V1 Cloud Events
  • Transforms events into your legacy format
  • Publishes events to your existing message bus or event endpoints

​
Direct API Integration

Use mTLS certificates to communicate directly with Commerce V1 REST endpoints from your existing services. This approach requires minimal changes to your service architecture.

​
Expose Extension Services

Configure Commerce V1 to call your existing Customer Experience and SEPA signing services. This preserves your current UI flows and compliance processes during migration.
Planning a migration? Contact your account representative to discuss migration strategies, data migration support, and timeline planning.
